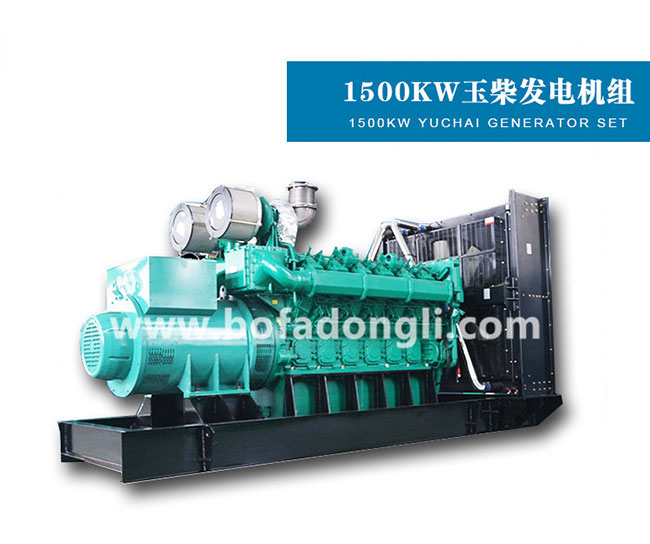

Model：1500GF

Steady state voltage adjustment rate（%）：≤±1

output power：1500Kw

Voltage fluctuation rate（%）：≤±0.5

Power factor:COSΦ=0.8（lag）

Transient voltage adjustment rate（%）：＋20～－15

Output voltage:400V/230V

Voltage stability time（s）：≤1

Output current:2700A

Steady state frequency regulation（%）：≤±1

Rated frequency:50Hz

Frequency fluctuation rate（%）:≤±0.5

Rated speed:1500rpm

Transient frequency adjustment rate（%）:＋10～－7

Fuel grade: (standard) 0 # light diesel (at room temperature)

Frequency stability time（S）:≤3

External dimensions:3600×1600×1850（L×W×H mm）

Fuel consumption (100% load):209g/kW·h

Unit weight:3650kg

Noise (LP7m):93dB（A）

Technical parameters of diesel engine:

Brand/Origin: Yuchai

Cooling method: closed water circulation cooling

Oil engine model:YC12VC2510L-D20

Fuel supply method: direct injection

Number of cylinders/dare to lift structure: 12/L type

Speed regulation method: electronic speed regulation/mechanical speed regulation

Bore stroke:159×159 mm

Air intake method: turbocharging

Compression ratio:13：1

Overload capacity:110%

Starting method: DC24V electric starting

Speed:1500rpm

Technical parameters of the generator:

Motor brand: Stanford

Protection level:IP22

Motor model:KTA50-GS8

Wiring method: three-phase four wire, Y-shaped connection

Rated power:1500kW

Adjustment method: AVR (automatic voltage regulator)

Rated voltage:400V/230V

Output frequency:50Hz

Insulation level: H-level

Output factor: COS Φ= 0.8 (lag)
