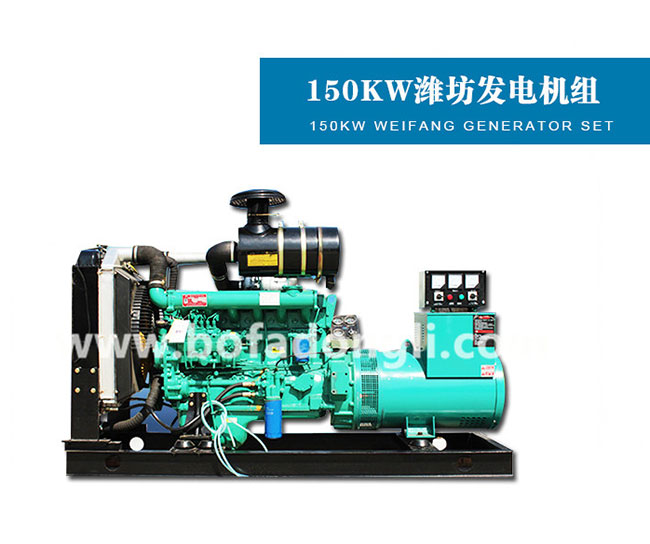

| Data of 150kw diesel generator set | |||
model | 150GF | start mode | 24V DC power start |
Unit power(KW) | 150 | output current（A） | 270 |
Standby Power（KW） | 155 | Output voltage(V) | 400/230 |
Power factor | 0.8(lag) | Connection | Three-phase four-wire |
frequency(Hz) | 50 | Unit weight(kg) | 1900 |
| Unit size(mm) | long | width | height |
2550 | 890 | 1700 | |
| Diesel engine data | |||
Manufacturer | Weifang diesel engine | model | 6113ZLD |
SPEED(Rpm) | 1500 | Engine power(KW/H) | 155 |
Number of cylinders | 6 | Cylinder arrangement | Inline |
Cylinder diameter x stroke(mm) | 113×125 | Cylinder displacement(L) | 8.3 |
Air Intake method | Turbo | Compression ratio | 16.5:1 |
fuel | China 0 # Light Diesel | Unit fuel consumption(g/kw.h) | ≤225 |
Total oil capacity(L) | 19 | start mode | Electric start |
Engine cooling method | Satisfy ambient temperature of 40 ℃, radiator, belt driven cooling fan | ||
| Generator data | |||
Manufacturer | Shanghai | model | 150KW |
power(KVA/KW) | 150 | Excitation method | with brush |
Insulation level | H | protection grade | IP22 |
Range of no-load voltage adjustment | ≥±5% | Steady state voltage adjustment rate | be better than±1% |
efficiency(%) | 94.8 | Voltage control mode | AVR |
