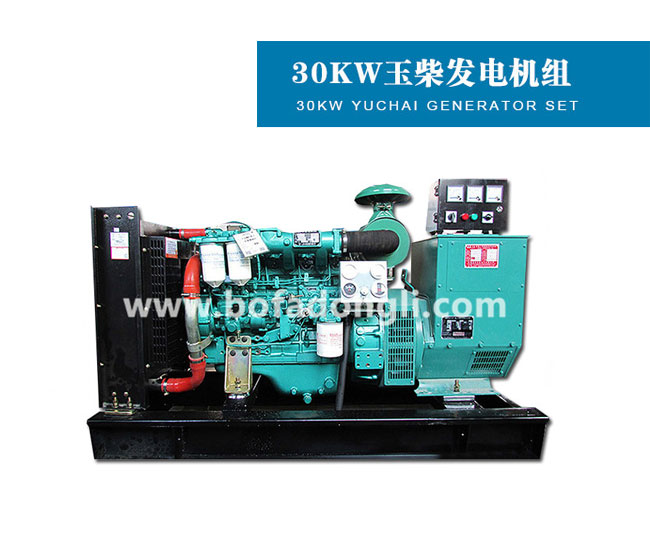

| 30kw Diesel generator set data | |||
model | 30GF | start mode | 24V DC power start |
Unit power (KW) | 30 | Rated output current (A) | 54 |
Backup power (KW) | 33 | Output voltage (V) | 400/230 |
Power factor | 0.8(lagging) | Connection | Three-phase four-wire |
Frequency (Hz) | 50 | Unit weight (kg) | 600 |
Unit size (mm) | long | width | height |
1700 | 600 | 1100 | |
Diesel engine data | |||
Manufacturer | Yuchai | model | YC4D60-D21 |
Rated speed (Rpm) | 1500 | Engine power (KW/H) | 33 |
Number of cylinders | 4 | Cylinder arrangement | Inline |
Cylinder diameter x stroke (mm) | 100×115 | Cylinder displacement (L) | 3.61 |
Air Intake method | Turbo | Compression ratio | 19.0:1 |
fuel | China 0 # Light Diesel | Unit fuel consumption (g/kg/h) | ≤258 |
Total oil capacity (L) | 13 | start mode | Electric start |
Engine cooling method | Satisfy ambient temperature of 40 ℃, radiator, belt driven cooling fan | ||
Generator data | |||
Manufacturer | Shanghai | model | 30KW |
Power (KVA/KW) | 30 | Excitation method | with brush |
Insulation level | H | protection grade | IP22 |
Range of no-load voltage adjustment | ≥±5% | Steady state voltage adjustment rate | be better than±1% |
efficiency(%) | 94.8 | Voltage control mode | AVR |
